Form Builder - Visibility Logic

You can use the Visibility Logic to control when a field or a group is visible on the form. When you click on Visibility Logic, you will see some new options appear.

Visibility screen for a Field:

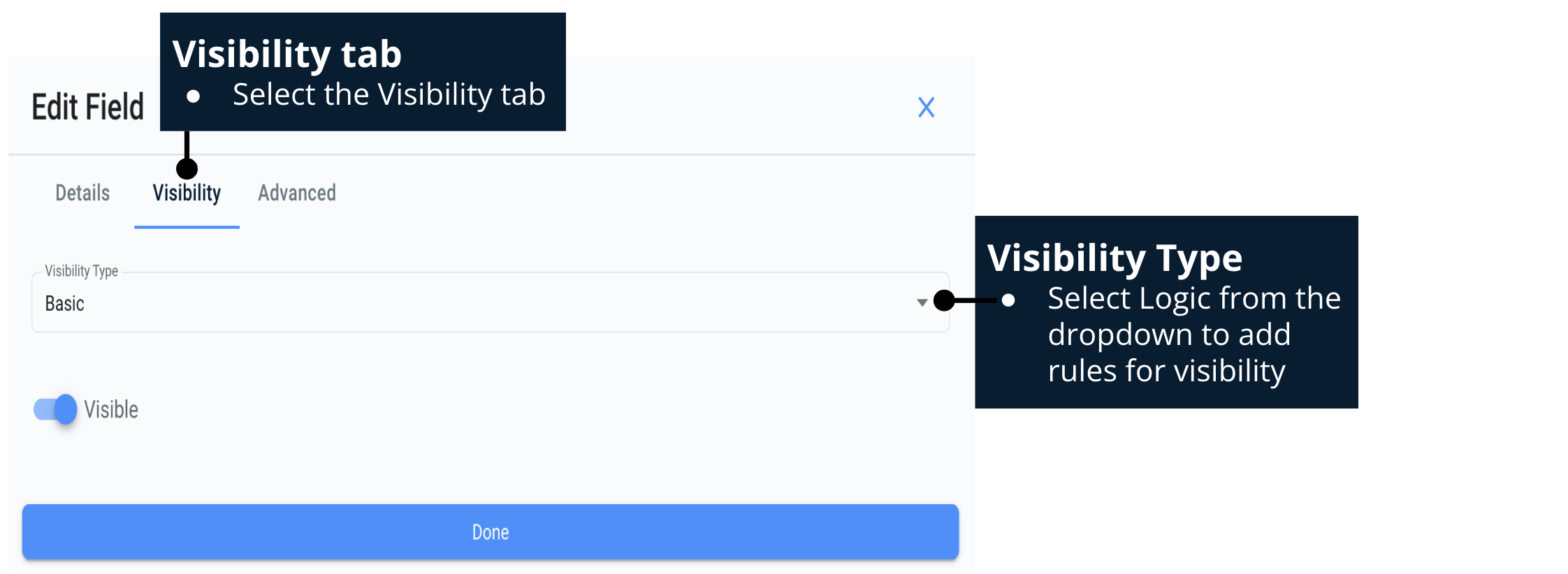

Screenshot 2024-03-13 at 10.19.01 AM.png



Visibility screen for a Group:

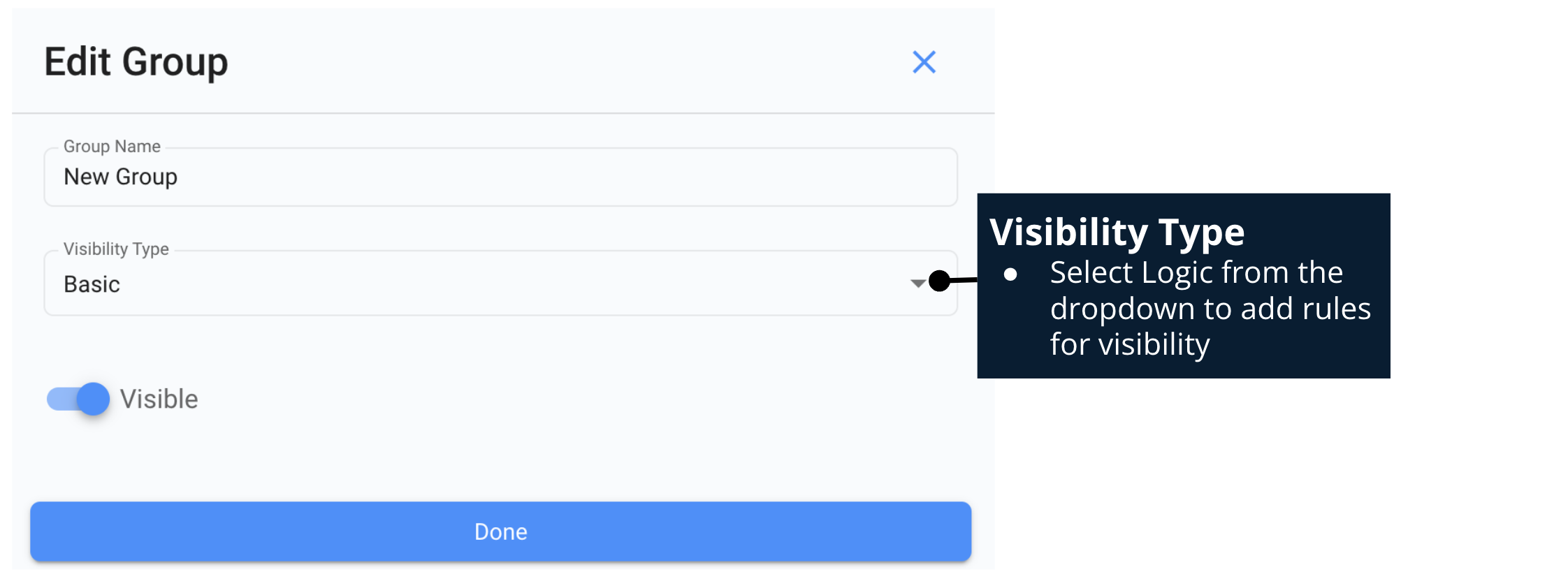

Screenshot 2024-03-13 at 10.19.51 AM.png

The first option you will see is the "AND" "OR" dropdown. This only applies if you are adding more than one controller to the visibility.

Example: If you want this field to only show if someone selects "No" on one field and "Yes" on another, you would use the “AND” operation. If you wanted the field to show if they select "Yes" or "No" you would select the “OR” operation.

Screenshot 2024-03-13 at 10.20.17 AM.png

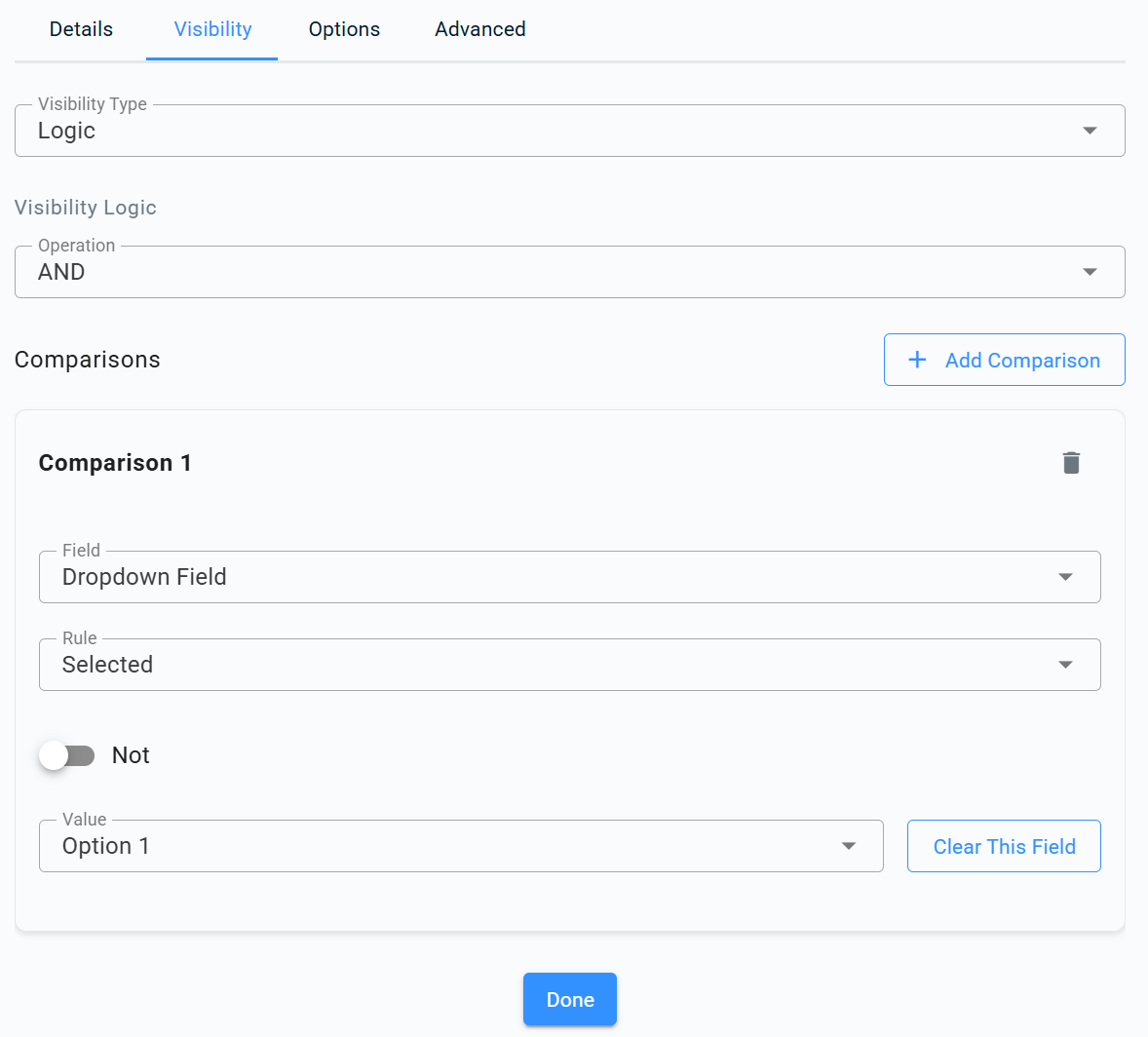

Second you will need to add comparisons. Comparisons dictate what field(s) control the visibility. You will select other fields in the form and the desired selection or input needed to make this field visible.

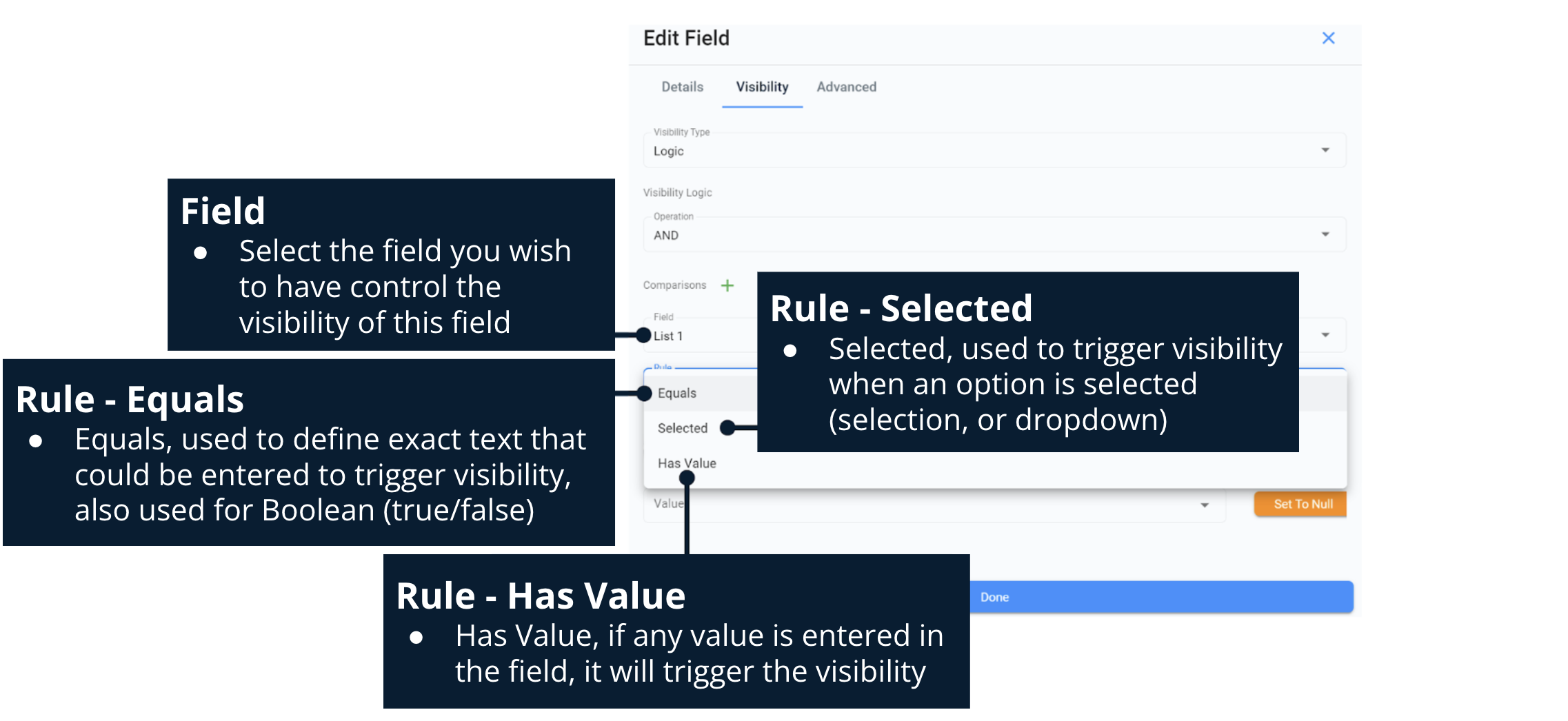

Screenshot 2024-03-13 at 10.23.15 AM.png

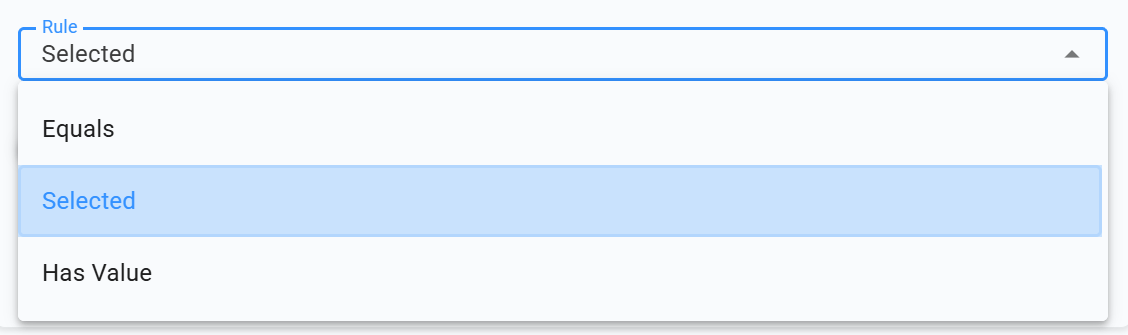

Once you have selected the field and the rule, you will see a dropdown based on the field you selected. This will have all the selection options for that field. Choose which selection you want to control the visibility of this field.

Screenshot 2024-03-13 at 10.23.47 AM.png

Once you have done all of the above, this field should not be visible unless it meets the rules you created.
